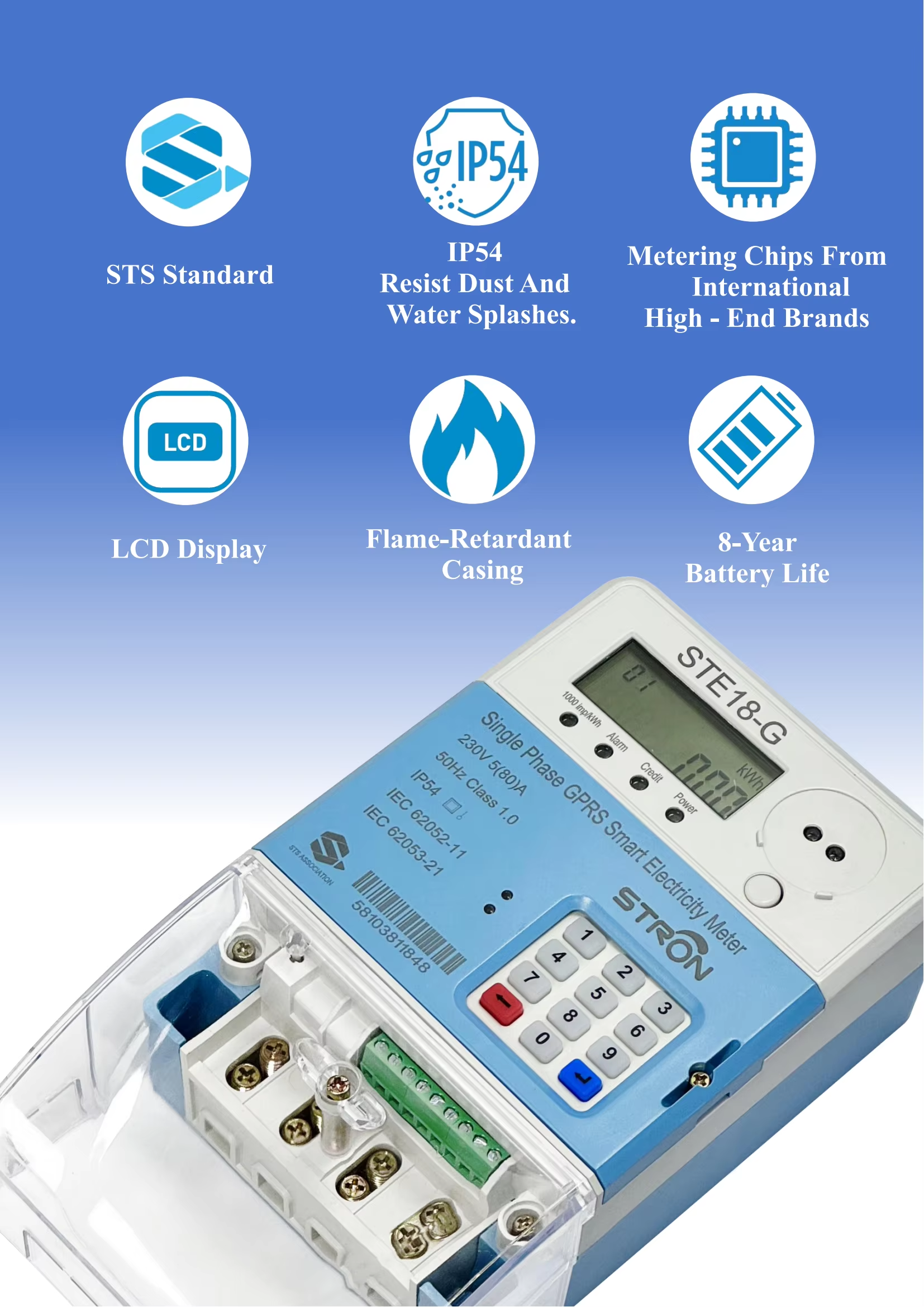

STE18-G Prepaid Smart GPRS Single Phase Electricity Meter+CIU

2026-03-18 08:02:55

STE18-G composed of a prepaid single phase electricity  meter and a customer interface unit(CIU). It used for a  wide range of smart metering applications, works with a  plug-in module for STS compliant data collection and  network communications. This modular design enables  utility to select from PLC/RF/GPRS 3G or 4G LTE cellular  data networks according to local conditions at low cost.  Upgrading and maintenance will also become cost-effective  by replacing the modules only instead of the entire meter.

Application:

Counting the electricity consumption of users over a period  of time.

Functions

The integrated keypad of single phase  electricity meter is offered to enter  recharge TOKEN and check information  by short codes.  The CIU installed in customer’s house,  when the meter is kept away from  customer’s reach in locked boxes or houses.

Basic Functions

✽Meter Recharge By Inputting TOKEN

✽Active energy measurement

✽MD(maximum demand measurement

✽Auto scroll mode display

✽Build-in relay control

✽Event log

✽Low Credit Alarm

Communication:

The meter is available with AMI system  through LORA-RF/PLC/GPRS module on  request.

TOU Tariff:

Meters can be set Step Tariff by inputting  corresponding TOKEN. Utilities can set  step price on request.

Anti-Tamper Functions:

Meter will automatically close the valve  after detection of magnetic field and open  cover event.

Overdraft Collection：

Electricity Overdraft can be collected  day by day or month by month.

Information Inquiry:

Consumer could check the data like  Credit Remain, Total Purchased and  Total Credit by input the short code.
